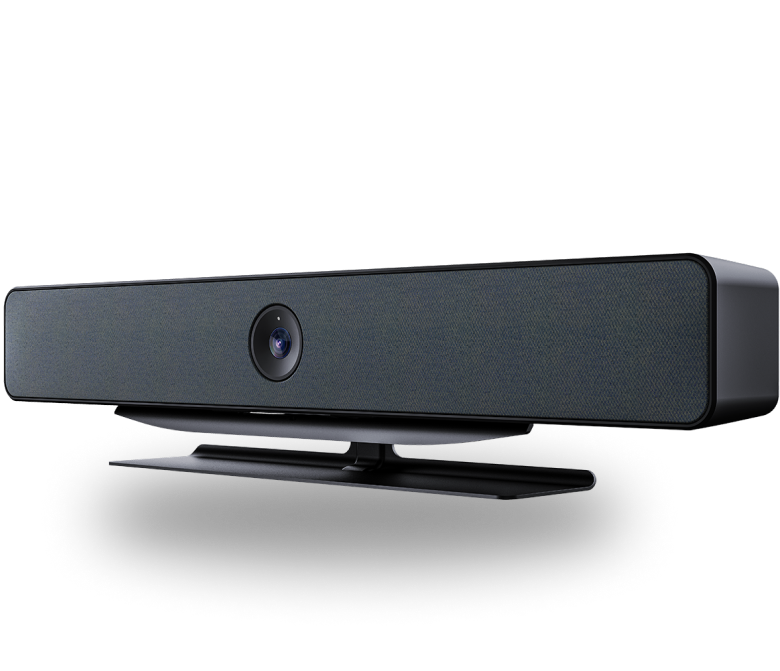

Axtel AX-4K Video Bar

Name: AX-4K Video Bar
Brand: Axtel World - Headsets, Phones. Axtel is delivering communication solutions.
SKU: AX-4K-VB
Availability: InStock
Rating: 5 (1 reviews)

PRODUCT SYMBOL: AX-4K-VB

Professional on-line communication all-in-one device

Comprehensive and also the most technologically advanced video conference speaker, providing audio and video features in the best possible quality – Axtel’s top solution for medium and large conference rooms.

Professional on-line
communication all-in-one device

AX-4k Video Bar is a next-generation professional video conference speaker that makes any online meeting participants feel as if they are having a face-to-face conversation. This innovative device has powerful features using Artificial Intelligence (AI), such as speaker tracking, group close-up, automatic framing, which certainly make video conferencing and business calls easier. In addition, it is equipped with a wide-angle lens that provides a field of view up to 120°, which is especially important when there are many people in the conference room or when there is a need to carry out presentations on an interactive whiteboard.

Highest video quality

AX-4k Video Bar provides the highest video quality in 16:9 format with 4K Ultra HD 2160P resolution and an effective smoothness of 30 frames per second. High picture quality is further ensured by glass lenses and a high-end image sensor from a highly recognized manufacturer – Sony 1/2.8 inch CMOS. Advanced users will also appreciate the advanced video features such as lens distortion correction or flicker reduction, as well as the audio features including echo and reverberation suppression, Automatic Gain Control (AGC), Direction of Arrival (DOA) or Full Duplex Technology i.e. free audio reception from multiple directions.

Innovative AI audio features

Innovative AI audio features, an integrated 5-element microphone that captures sound from up to 5 meters away, and a high-end wideband speaker ensure top-quality online business communications. Other features that set the AX-4k Video Bar ahead of such devices include an active noise cancelling system, Auto Focus, Auto White Balance, as well as the ability to daisy-chain up to 4 additional conference speakers, making it suitable for large conference rooms. In addition, the set comes with a functional remote control, a desk stand and a 5-meter USB-C cable.

Key features

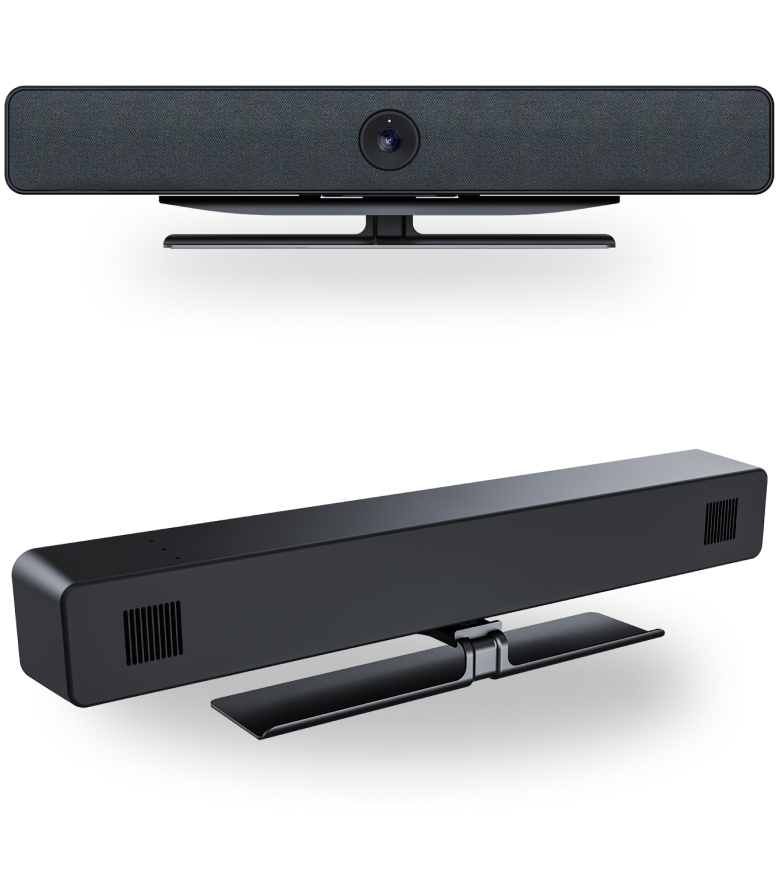

AX-4K-VB-featuers

Ultra HD 4K Video Quality

Artificial Intelligence functions – Auto-Framing, Group Close-Up, Speaker Tracking, Noise Cancellation Technology

Extra wide field-of-view up to 120 degrees

5-element microphone array, clear sound pickup within 5 meters

Daisy chain for covering larger conference rooms

Auto Focus and White Balance

High definition full band speaker

USB-C Plug & Play connection

Additional items

AX 20 Conference Speaker Microphone - AX-20-CSM

The perfect upgrade for your meeting room. You can connect up to five AX-20-CSMs in daisy-chain, providing brilliant sound in every corner of a large conference room.

Whether you need to host a small meeting, a large conference, or anything in between, the AX20 can handle it. It has an 8-element microphone array that uses advanced beamforming and noise suppression technology to filter out echo, reverberation, and background noise, ensuring that every voice is heard clearly and equally. It also has a powerful speaker that delivers crisp and loud sound, with a wide frequency response and low distortion. And it’s easy to set up and use, with just a USB or ethernet cable and a plug-and-play compatibility with leading conferencing software. You can also daisy-chain up to five units together to create a combined array of microphones that covers various size rooms. The AX20 Conference Speaker Microphone also features full-duplex technology, which allows for simultaneous communication between both ends of the call, ensuring no words are missed during the conversation. The AX20 Conference Speaker Microphone from Axtel offers a sleek and compact design, a galaxy gray color, and a durable and lightweight body. Don’t let outdated and noisy meeting rooms ruin your productivity and professionalism. Upgrade your experience with the AX20 Conference Speaker Microphone from Axtel and enjoy flawless meetings.

Wall brackets: AX-VB-WALL

Dimensions:
152.5 mm x 52.5 mm

Dedicated wall bracket. The small form factor allows for great interior design possibilities. The well-thought-out design allows for easy insertion of cables into the prepared channel in the wall, creating an elegant and clean installation without visible cables.

AX-VB-VESA

Dimensions:
Wall-mounted part:: 460.0 mm x 37.0 mm x 10.5 mm
Part attached to AX-4K-VB: 440.0 mm x 34.9 mm x 66.8 mm

Compatibility with VESA systems: 100 mm, 200 mm, 300 mm, 400 mm
With this bracket you can easily mount the AX-4K Videobar on trolleys, frames or systems compatible with the VESA standard 100, 200, 300 and 400 mm.

Technical Data

	AX-FHD Webcam	AX-FHD Webcam Pro	AX-2K Business Webcam	AX-4K Business Webcam	AX-4K VIDEO BAR	AX-FHD Portable Webcam
Category	Professional	Professional	Professional	Professional	Professional	Professional
Video Resolution	Full HD 1080p (1920×1080 pixels, 16:9 aspect ratio)	Full HD 1080p (1920×1080 pixels, 16:9 aspect ratio)	2K QHD 1440P (format 16:9)	2160p	Ultra HD 2160p	Full HD 1080p
Frame Rate	30 FPS	60 FPS	60 FPS	30 FPS	30 FPS	30 FPS
Field of view	90 degree	105 degree	90 degree	120 degree	120 degree	96 degree
Focus Adjust	Auto Focus	Auto Focus	Auto Focus	Auto Focus, Auto-Framing	Auto Focus, Auto-Framing	Auto Focus
Microphone	Internal Digital Microphone with Noise Reduction	Internal Digital Microphone with Noise Reduction	Internal Digital 2-element microphone	Internal Digital 4-element microphone	Internal Digital 5-element microphone	Internal Digital 4-element 360° microphone
Min. Sensivity	2.0V/Lux	2.0V/Lux	f/2,3	f/1.8	f/1.8	f/2.8
Lens	5 element optical glass lens	5 element optical glass lens	Optical glass lens	Optical glass lens	Optical glass lens	Optical glass lens
Image sensor	—	—	—	Sony 1/2.8 inches CMOS	Sony 1/2.8 inches CMOS	1/2.9 inches CMOS
Focal length	70 mm	70 mm	3,00 mm fixed focus	2,26 mm fixed focus	2,2 mm fixed focus	2,7 mm fixed focus
Video Coding	MJPG, YUY2	MJPG, YUY2	YUV, MJPEG	YUV, MJPEG, H264	YUV, MJPEG, H264	YUV, MJPEG
Plug&Play	Yes	Yes	Yes	Yes	Yes	Yes
Connection	Hi-speed USB 2.0 (USB 3.0 compatible)	Hi-speed USB 2.0 (USB 3.0 compatible)	Hi-speed USB-C	Hi-speed USB-C	Hi-speed USB-C	Hi-speed USB-C / USB-A adapter
Compatible	Windows 7, Windows 8, or Windows 10, Mac OS X 10.6 or higher, Chrome OS Version 29 or higher, Android v 5.0 or higher	Windows 7, Windows 8, or Windows 10, Mac OS X 10.6 or higher, Chrome OS Version 29 or higher, Android v 5.0 or higher	Windows / Mac / Linux	Windows / Mac / Linux	Windows / Mac / Linux	Windows / Mac / Linux
Cable length	2 meters	2 meters	2 meters	2 meters	5 meters	0.7 meters
Warranty	1-year	1-year	1-year	1-year	1-year	1-year
Part Number	AX-FHD-1080P	AX-FHD-1080P-Pro	AX-2K-1440P	AX-4K-2160P	X-4K-VB	AX-FHD-PW
